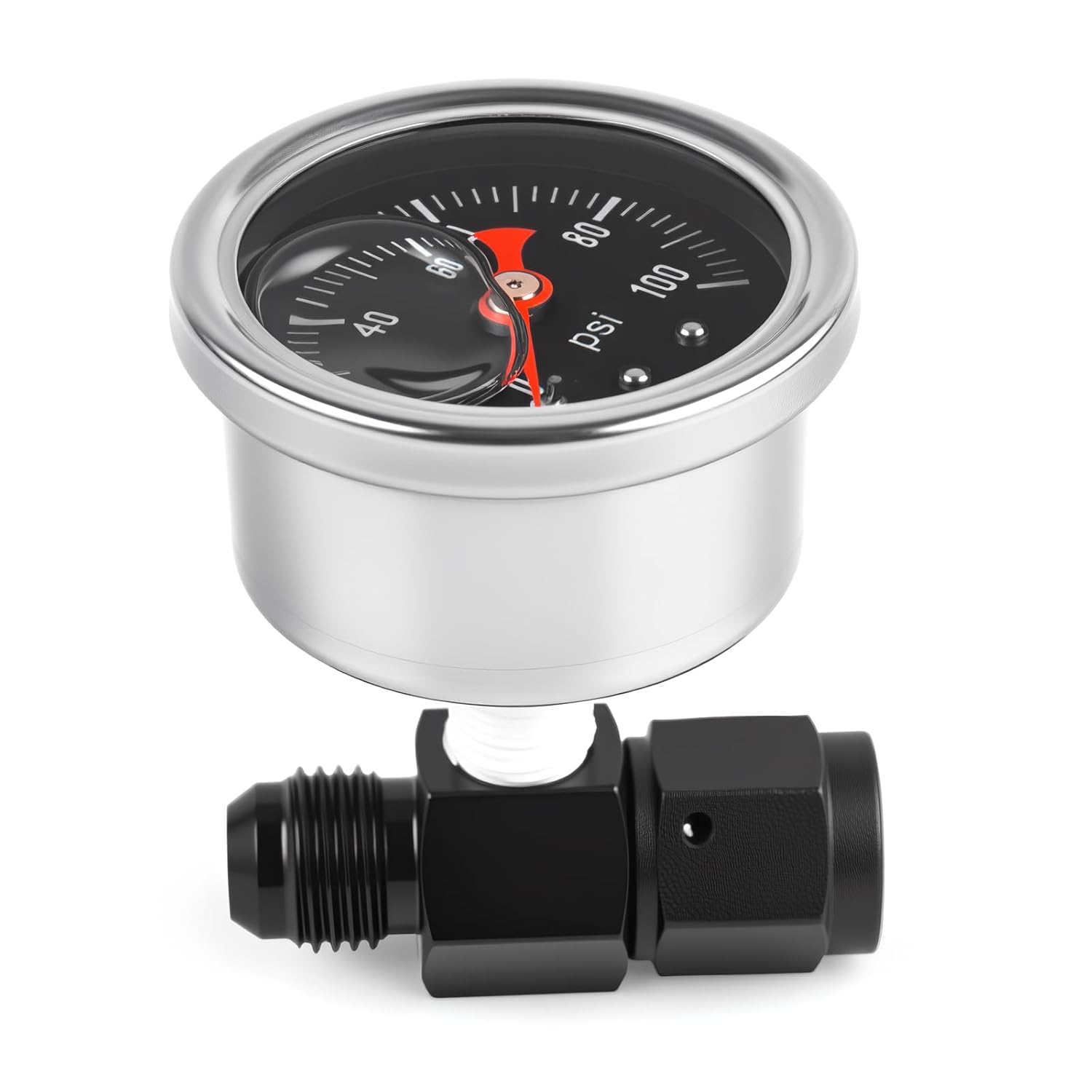

Universal 0-100psi Fuel Pressure Gauge 1/8" NPT Oil Press Gauge with 6AN Male Flare to -6 Female Swivel Fuel Pressure Take Off Fitting Adapter

Features:Fuel Pressure GaugeRange: 0-100 psiThread Type: 1/8" NPTDial size: 1-1/2"Gauge Body size(Outermost diameter):1.87"Gauge Body height(Including threads):1.79"Working temperature: -4 to 140 deg F/-20 to 60 deg C Liquid FILLED keeps the needle steady, which is extremely critical during engine operation.Fuel Pressure Gauge Fitting Adapter6AN Male Flare to -6 Female with 1/8" NPT gauge Port,the thread size of the 6AN is 9/16-18UNF.Sealing: The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.Material：Made of 6061-T6 aluminium alloy.Scope of Application:Widely used in fuel system to add a fuel pressure gauge or sensor between fuel lines.

• Gauge Size:Range: 0-100 psi,Thread Type: 1/8" NPT,Dial size: 1-1/2",Gauge Body size(Outermost diameter):1.87",Gauge Body height(Including threads):1.79",Working temperature: -4 to 140 deg F/-20 to 60 deg C
• Adapter Size: 6AN Male Flare to -6 Female with 1/8" NPT gauge Port,the thread size of the 6AN is 9/16-18UNF
• Sealing:The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.The Liquid filled keeps the needle steady and lubricates the movement to extends the life of gauge
• Material: Stainless steel case, brass wetted parts, glycerin filled, aluminum Fuel Pressure Gauge Fitting Adapter
